HLF压力管路过滤器

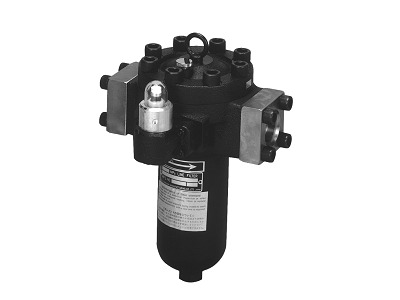

产品外观
HLF 产品图片待补充
HLF压力管路过滤器
产品特点
- 压力管路过滤器，通径 3/4～2（06～16）
- 公称尺寸：20A～50A
- 可选堵塞检测装置（电接点型）
- 滤芯材质：滤纸，过滤精度 10~400μm
- 适用于中高压液压系统压力管路
型号代码 示例：W-HLFs08-10P08F-N2
※
流体种类
| 符号 | 流体 |
|---|---|
| 无符号 | 普通矿物油 |
| W | 水乙二醇 |
| F | 磷酸酯油 |
| QE | 脂肪酸酯油 |
HLF
型号
※
附件
| 符号 | 类型 |
|---|---|
| 无符号 | 无附件 |
| M | 磁铁 |
| S | 目视指示器 |
| E | 电接点指示器 |
08
系列号
| 系列号 | 口径 |
|---|---|
| 06 | 3/4 |
| 08 | 1" |
| 10 | 1¼" |
| 12 | 1½" |
| 16 | 2" |
10P
过滤精度(μm)
滤材
滤材
| 精度范围 | 滤材 |
|---|---|
| 3,5,10,20,40 | P(纸) |
| 5~400 | S(不锈钢网) |
08
连接口径
F
连接方式
| 符号 | 方式 |
|---|---|
| T | 螺纹 |
| F | 法兰 |
※
特殊规格
常用型号 - HLF压力管路过滤器 | MASUDA增田原装进口
| 常用型号 |
|---|
| HLF06-10P06F |
| HLF08-10P08F |
| HLF12-10P12F |
| HLF16-10P16F |
| HLFS06-10P06F |
| HLFS08-10P08F |
| HLFS12-10P12F |
| HLFS16-10P16F |
| HLFM06-10P06F |
| HLFM08-10P08F |
| HLFM12-10P12F |
| HLFM16-10P16F |
| HLFE06-10P06F |
| HLFE08-10P08F |
| HLFE12-10P12F |
| HLFE16-10P16F |
| W-HLF06-10S06F |
| W-HLF08-10S08F |
| W-HLF12-10S12F |
| W-HLF16-10S16F |
| W-HLFS06-10S06F |
| W-HLFS08-10S08F |
| W-HLFS12-10S12F |
| W-HLFS16-10S16F |
| W-HLFM06-10S06F |
| W-HLFM08-10S08F |
| W-HLFM12-10S12F |
| W-HLFM16-10S16F |
| W-HLFE06-10S06F |
| W-HLFE08-10S08F |
| W-HLFE12-10S12F |
| W-HLFE16-10S16F |
| 常用型号 |
|---|
| F-HLF06-10S06F |
| F-HLF08-10S08F |
| F-HLF12-10S12F |
| F-HLF16-10S16F |
| F-HLFS06-10S06F |
| F-HLFS08-10S08F |
| F-HLFS12-10S12F |
| F-HLFS16-10S16F |
| F-HLFM06-10S06F |
| F-HLFM08-10S08F |
| F-HLFM12-10S12F |
| F-HLFM16-10S16F |
| F-HLFE06-10S06F |
| F-HLFE08-10S08F |
| F-HLFE12-10S12F |
| F-HLFE16-10S16F |
| QE-HLF06-10S06F |
| QE-HLF08-10S08F |
| QE-HLF12-10S12F |
| QE-HLF16-10S16F |
| QE-HLFS06-10S06F |
| QE-HLFS08-10S08F |
| QE-HLFS12-10S12F |
| QE-HLFS16-10S16F |
| QE-HLFM06-10S06F |
| QE-HLFM08-10S08F |
| QE-HLFM12-10S12F |
| QE-HLFM16-10S16F |
| QE-HLFE06-10S06F |
| QE-HLFE08-10S08F |
| QE-HLFE12-10S12F |
| QE-HLFE16-10S16F |
| 配套滤芯 |
|---|
| H06-010P |
| H08-010P |
| H12-010P |
| H16-010P |
| H06-020P |
| H08-020P |
| H12-020P |
| H16-020P |
| H06-040P |
| H08-040P |
| H12-040P |
| H16-040P |
| H06-010SW-W |
| H08-010SW-W |
| H12-010SW-W |
| H16-010SW-W |
| H06-010SW-QE |
| H08-010SW-QE |
| H12-010SW-QE |
| H16-010SW-QE |
| H06-010SW-S |
| H08-010SW-S |
| H12-010SW-S |
| H16-010SW-S |
| H06-005SW |
| H08-005SW |
| H12-005SW |
| H16-005SW |
| H06-010SW |
| H08-010SW |
| H12-010SW |
| H16-010SW |
| H06-030SW |
| H08-030SW |
| H12-030SW |
| H16-030SW |
| H06-050SW |
| H08-050SW |
| H12-050SW |
| H16-050SW |
| H06-075SW |
| H08-075SW |
| H12-075SW |
| H16-075SW |
| H06-100SW |
| H08-100SW |
| H12-100SW |
| H16-100SW |
| H06-150SW |
| H08-150SW |
| H12-150SW |
| H16-150SW |
