FPM 7MPa 线性过滤器

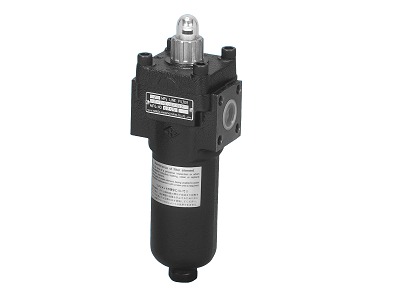

产品外观
FPM 产品图片待补充
FPM 7MPa 线性过滤器
产品特点
- 滤芯从顶部拆卸，维护简单方便
- 与现有产品相比，流动阻力小
- 通过翻转上盖，可轻松改变流向
- 可选配差压检测装置（目视检查型或电接点型）
- 可选规格：03～12（3/8～1 1/2 英寸），最大工作压力 7 MPa
- 使用矿物油以外的液压油时密封材质会变化
型号代码 示例：W-FPMs08-10P
※
流体种类
| 符号 | 流体 |
|---|---|
| 无符号 | 普通矿物油 |
| W | 水乙二醇 |
| F | 磷酸酯油 |
| QE | 脂肪酸酯油 |
FPM
型号
※
堵塞指示器
| 符号 | 类型 |
|---|---|
| 无符号 | 无 |
| S | 目视式 |
| E | 电接点式 |
08
系列号
| 系列号 | 口径 |
|---|---|
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 08 | 1" |
| 10 | 1¼" |
| 12 | 1½" |
※
连接方式
| 符号 | 方式 |
|---|---|
| 无符号 | 螺纹(03~08) |
| F | 法兰(10,12) |
10P
过滤精度(μm)
滤材
滤材
| 精度范围 | 滤材 |
|---|---|
| 3,5,10,20,40 | P(纸) |
| 5~400 | S(不锈钢网) |
※
特殊规格
备用滤芯代码 示例：A08-010P-W
A
APL/FPM
08
系列号
010
精度(μm)
P
滤材
W
流体
常用型号 - FPM 7MPa 线性过滤器 | MASUDA增田原装进口
| 常用型号 |
|---|
| FPM03-10P |
| FPM04-10P |
| FPM06-10P |
| FPM08-10P |
| FPM10-10P |
| FPM12-10P |
| FPMS03-10P |
| FPMS04-10P |
| FPMS06-10P |
| FPMS08-10P |
| FPMS10-10P |
| FPMS12-10P |
| FPME03-10P |
| FPME04-10P |
| FPME06-10P |
| FPME08-10P |
| FPME10-10P |
| FPME12-10P |
| W-FPM03-10S |
| W-FPM04-10S |
| W-FPM06-10S |
| W-FPM08-10S |
| W-FPM10-10S |
| W-FPM12-10S |
| W-FPMS03-10S |
| W-FPMS04-10S |
| W-FPMS06-10S |
| W-FPMS08-10S |
| W-FPMS10-10S |
| W-FPMS12-10S |
| W-FPME03-10S |
| W-FPME04-10S |
| W-FPME06-10S |
| W-FPME08-10S |
| W-FPME10-10S |
| W-FPME12-10S |
| W-FPME08F-300S |
| 常用型号 |
|---|
| F-FPM03-10S |
| F-FPM04-10S |
| F-FPM06-10S |
| F-FPM08-10S |
| F-FPM10-10S |
| F-FPM12-10S |
| F-FPMS03-10S |
| F-FPMS04-10S |
| F-FPMS06-10S |
| F-FPMS08-10S |
| F-FPMS10-10S |
| F-FPMS12-10S |
| F-FPME03-10S |
| F-FPME04-10S |
| F-FPME06-10S |
| F-FPME08-10S |
| F-FPME10-10S |
| F-FPME12-10S |
| QE-FPM03-10S |
| QE-FPM04-10S |
| QE-FPM06-10S |
| QE-FPM08-10S |
| QE-FPM10-10S |
| QE-FPM12-10S |
| QE-FPMS03-10S |
| QE-FPMS04-10S |
| QE-FPMS06-10S |
| QE-FPMS08-10S |
| QE-FPMS10-10S |
| QE-FPMS12-10S |
| QE-FPME03-10S |
| QE-FPME04-10S |
| QE-FPME06-10S |
| QE-FPME08-10S |
| QE-FPME10-10S |
| QE-FPME12-10S |
| 配套滤芯 |
|---|
| A03-010P |
| A04-010P |
| A06-010P |
| A08-010P |
| A10-010P |
| A12-010P |
| A03-010SW-W |
| A04-010SW-W |
| A06-010SW-W |
| A08-010SW-W |
| A10-010SW-W |
| A12-010SW-W |
| A03-010SW-F |
| A04-010SW-F |
| A06-010SW-F |
| A08-010SW-F |
| A10-010SW-F |
| A12-010SW-F |
| A03-010SW-QE |
| A04-010SW-QE |
| A06-010SW-QE |
| A08-010SW-QE |
| A10-010SW-QE |
| A12-010SW-QE |
