APL 3.5 兆帕管线过滤器

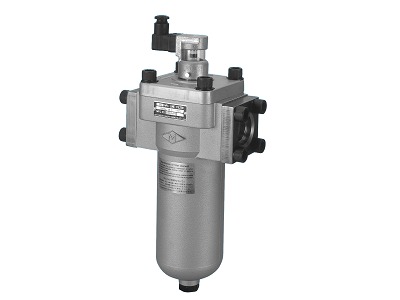

产品外观
APL 产品图片待补充
APL 3.5 兆帕管线过滤器
产品特点
- 壳体采用铝合金制造，重量轻、结构紧凑
- 滤芯从顶部拆卸，维护简单方便
- 与现有产品相比，流动阻力小
- 通过翻转上盖，可以轻松改变流向
- 可选差压检测装置（目视检查型或电接点型）
- 规格范围：03～24（3/8 英寸～3 英寸），最大工作压力 3.5 MPa
- 使用矿物油以外的液压油时密封材质会变化
型号代码 示例：W-APLs08-10P
※
流体种类
| 符号 | 流体 |
|---|---|
| 无符号 | 普通矿物油 |
| W | 水乙二醇 |
| F | 磷酸酯油 |
| QE | 脂肪酸酯油 |
APL
型号
※
检测器
| 符号 | 类型 |
|---|---|
| 无符号 | 无检测器 |
| S | 目视式 |
| E | 电接点式 |
08
系列号
| 系列号 | 口径 |
|---|---|
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 08 | 1" |
| 10 | 1¼" |
| 12 | 1½" |
| 16 | 2" |
| 20 | 2½" |
| 24 | 3" |
※
连接方式
| 符号 | 方式 |
|---|---|
| 无符号 | 螺纹(03~12) |
| F | 法兰(16~24) |
10P
过滤精度(μm)
滤材
滤材
| 精度范围 | 滤材 |
|---|---|
| 3,5,10,20,40 | P(纸) |
| 5~400 | S(不锈钢网) |
※
特殊规格
※
设计编号
| 符号 | 尺寸 |
|---|---|
| 无符号 | 03~16 |
| 11 | 20,24 |
备用滤芯代码 示例：A08-010P-W
A
APL/FPM
08
系列号
010
精度(μm)
P
滤材
W
流体
常用型号 - APL 3.5 兆帕管线过滤器 | MASUDA增田原装进口
| 常用型号 |
|---|
| APL03-10P |
| APL04-10P |
| APL06-10P |
| APL08-10P |
| APL10-10P |
| APL12-10P |
| APL16-10P |
| APL20F-10P-11 |
| APL24F-10P-11 |
| APL03-20P |
| APL04-20P |
| APL06-20P |
| APL08-20P |
| APL10-20P |
| APL12-20P |
| APL16-20P |
| APL20F-20P-11 |
| APL24F-20P-11 |
| APL03-40P |
| APL04-40P |
| APL06-40P |
| APL08-40P |
| APL10-40P |
| APL12-40P |
| APL16-40P |
| APL20F-40P-11 |
| APL24F-40P-11 |
| W-APL03-10P |
| W-APL04-10P |
| W-APL06-10P |
| W-APL08-10P |
| W-APL10-10P |
| W-APL12-10P |
| W-APL16-10P |
| W-APL20F-10P-11 |
| W-APL24F-10P-11 |
| W-APL03-20P |
| W-APL04-20P |
| W-APL06-20P |
| W-APL08-20P |
| W-APL10-20P |
| W-APL12-20P |
| W-APL16-20P |
| W-APL20F-20P-11 |
| W-APL24F-20P-11 |
| W-APL03-40P |
| W-APL04-40P |
| W-APL06-40P |
| W-APL08-40P |
| W-APL10-40P |
| W-APL12-40P |
| W-APL16-40P |
| W-APL20F-40P-11 |
| W-APL24F-40P-11 |
| F-APL03-10P |
| F-APL04-10P |
| F-APL06-10P |
| F-APL08-10P |
| F-APL10-10P |
| F-APL12-10P |
| F-APL16-10P |
| F-APL20F-10P-11 |
| F-APL24F-10P-11 |
| F-APL03-20P |
| F-APL04-20P |
| F-APL06-20P |
| F-APL08-20P |
| F-APL10-20P |
| F-APL12-20P |
| F-APL16-20P |
| F-APL20F-20P-11 |
| F-APL24F-20P-11 |
| F-APL03-40P |
| F-APL04-40P |
| F-APL06-40P |
| F-APL08-40P |
| F-APL10-40P |
| F-APL12-40P |
| F-APL16-40P |
| F-APL20F-40P-11 |
| F-APL24F-40P-11 |
| QE-APL03-10P |
| QE-APL04-10P |
| QE-APL06-10P |
| QE-APL08-10P |
| QE-APL10-10P |
| QE-APL12-10P |
| QE-APL16-10P |
| QE-APL20F-10P-11 |
| QE-APL24F-10P-11 |
| QE-APL03-20P |
| QE-APL04-20P |
| QE-APL06-20P |
| QE-APL08-20P |
| QE-APL10-20P |
| QE-APL12-20P |
| QE-APL16-20P |
| QE-APL20F-20P-11 |
| QE-APL24F-20P-11 |
| QE-APL03-40P |
| QE-APL04-40P |
| QE-APL06-40P |
| QE-APL08-40P |
| QE-APL10-40P |
| QE-APL12-40P |
| QE-APL16-40P |
| QE-APL20F-40P-11 |
| QE-APL24F-40P-11 |
| APLS03-10P |
| APLS04-10P |
| APLS06-10P |
| APLS08-10P |
| APLS10-10P |
| APLS12-10P |
| APLS16-10P |
| APLS20F-10P-11 |
| APLS24F-10P-11 |
| APLS03-20P |
| APLS04-20P |
| APLS06-20P |
| APLS08-20P |
| APLS10-20P |
| APLS12-20P |
| APLS16-20P |
| APLS20F-20P-11 |
| APLS24F-20P-11 |
| APLS03-40P |
| APLS04-40P |
| APLS06-40P |
| APLS08-40P |
| APLS10-40P |
| APLS12-40P |
| APLS16-40P |
| APLS20F-40P-11 |
| APLS24F-40P-11 |
| W-APLS03-10P |
| W-APLS04-10P |
| W-APLS06-10P |
| W-APLS08-10P |
| W-APLS10-10P |
| W-APLS12-10P |
| W-APLS16-10P |
| W-APLS20F-10P-11 |
| W-APLS24F-10P-11 |
| W-APLS03-20P |
| W-APLS04-20P |
| W-APLS06-20P |
| W-APLS08-20P |
| W-APLS10-20P |
| W-APLS12-20P |
| W-APLS16-20P |
| W-APLS20F-20P-11 |
| W-APLS24F-20P-11 |
| W-APLS03-40P |
| W-APLS04-40P |
| W-APLS06-40P |
| W-APLS08-40P |
| W-APLS10-40P |
| W-APLS12-40P |
| W-APLS16-40P |
| W-APLS20F-40P-11 |
| W-APLS24F-40P-11 |
| 常用型号 |
|---|
| F-APLS03-10P |
| F-APLS04-10P |
| F-APLS06-10P |
| F-APLS08-10P |
| F-APLS10-10P |
| F-APLS12-10P |
| F-APLS16-10P |
| F-APLS20F-10P-11 |
| F-APLS24F-10P-11 |
| F-APLS03-20P |
| F-APLS04-20P |
| F-APLS06-20P |
| F-APLS08-20P |
| F-APLS10-20P |
| F-APLS12-20P |
| F-APLS16-20P |
| F-APLS20F-20P-11 |
| F-APLS24F-20P-11 |
| F-APLS03-40P |
| F-APLS04-40P |
| F-APLS06-40P |
| F-APLS08-40P |
| F-APLS10-40P |
| F-APLS12-40P |
| F-APLS16-40P |
| F-APLS20F-40P-11 |
| F-APLS24F-40P-11 |
| QE-APLS03-10P |
| QE-APLS04-10P |
| QE-APLS06-10P |
| QE-APLS08-10P |
| QE-APLS10-10P |
| QE-APLS12-10P |
| QE-APLS16-10P |
| QE-APLS20F-10P-11 |
| QE-APLS24F-10P-11 |
| QE-APLS03-20P |
| QE-APLS04-20P |
| QE-APLS06-20P |
| QE-APLS08-20P |
| QE-APLS10-20P |
| QE-APLS12-20P |
| QE-APLS16-20P |
| QE-APLS20F-20P-11 |
| QE-APLS24F-20P-11 |
| QE-APLS03-40P |
| QE-APLS04-40P |
| QE-APLS06-40P |
| QE-APLS08-40P |
| QE-APLS10-40P |
| QE-APLS12-40P |
| QE-APLS16-40P |
| QE-APLS20F-40P-11 |
| QE-APLS24F-40P-11 |
| APLE03-10P |
| APLE04-10P |
| APLE06-10P |
| APLE08-10P |
| APLE10-10P |
| APLE12-10P |
| APLE16-10P |
| APLE20F-10P-11 |
| APLE24F-10P-11 |
| APLE03-20P |
| APLE04-20P |
| APLE06-20P |
| APLE08-20P |
| APLE10-20P |
| APLE12-20P |
| APLE16-20P |
| APLE20F-20P-11 |
| APLE24F-20P-11 |
| APLE03-40P |
| APLE04-40P |
| APLE06-40P |
| APLE08-40P |
| APLE10-40P |
| APLE12-40P |
| APLE16-40P |
| APLE20F-40P-11 |
| APLE24F-40P-11 |
| W-APLE03-10P |
| W-APLE04-10P |
| W-APLE06-10P |
| W-APLE08-10P |
| W-APLE10-10P |
| W-APLE12-10P |
| W-APLE16-10P |
| W-APLE20F-10P-11 |
| W-APLE24F-10P-11 |
| W-APLE03-20P |
| W-APLE04-20P |
| W-APLE06-20P |
| W-APLE08-20P |
| W-APLE10-20P |
| W-APLE12-20P |
| W-APLE16-20P |
| W-APLE20F-20P-11 |
| W-APLE24F-20P-11 |
| W-APLE03-40P |
| W-APLE04-40P |
| W-APLE06-40P |
| W-APLE08-40P |
| W-APLE10-40P |
| W-APLE12-40P |
| W-APLE16-40P |
| W-APLE20F-40P-11 |
| W-APLE24F-40P-11 |
| F-APLE03-10P |
| F-APLE04-10P |
| F-APLE06-10P |
| F-APLE08-10P |
| F-APLE10-10P |
| F-APLE12-10P |
| F-APLE16-10P |
| F-APLE20F-10P-11 |
| F-APLE24F-10P-11 |
| F-APLE03-20P |
| F-APLE04-20P |
| F-APLE06-20P |
| F-APLE08-20P |
| F-APLE10-20P |
| F-APLE12-20P |
| F-APLE16-20P |
| F-APLE20F-20P-11 |
| F-APLE24F-20P-11 |
| F-APLE03-40P |
| F-APLE04-40P |
| F-APLE06-40P |
| F-APLE08-40P |
| F-APLE10-40P |
| F-APLE12-40P |
| F-APLE16-40P |
| F-APLE20F-40P-11 |
| F-APLE24F-40P-11 |
| QE-APLE03-10P |
| QE-APLE04-10P |
| QE-APLE06-10P |
| QE-APLE08-10P |
| QE-APLE10-10P |
| QE-APLE12-10P |
| QE-APLE16-10P |
| QE-APLE20F-10P-11 |
| QE-APLE24F-10P-11 |
| QE-APLE03-20P |
| QE-APLE04-20P |
| QE-APLE06-20P |
| QE-APLE08-20P |
| QE-APLE10-20P |
| QE-APLE12-20P |
| QE-APLE16-20P |
| QE-APLE20F-20P-11 |
| QE-APLE24F-20P-11 |
| QE-APLE03-40P |
| QE-APLE04-40P |
| QE-APLE06-40P |
| QE-APLE08-40P |
| QE-APLE10-40P |
| QE-APLE12-40P |
| QE-APLE16-40P |
| QE-APLE20F-40P-11 |
| QE-APLE24F-40P-11 |
| 配套滤芯 |
|---|
| A03-003P |
| A03-005P |
| A03-010P |
| A03-020P |
| A03-040P |
| A04-003P |
| A04-005P |
| A04-010P |
| A04-020P |
| A04-040P |
| A06-003P |
| A06-005P |
| A06-010P |
| A06-020P |
| A06-040P |
| A08-003P |
| A08-005P |
| A08-010P |
| A08-020P |
| A08-040P |
| A10-003P |
| A10-005P |
| A10-010P |
| A10-020P |
| A10-040P |
| A12-003P |
| A12-005P |
| A12-010P |
| A12-020P |
| A12-040P |
| A16-003P |
| A16-005P |
| A16-010P |
| A16-020P |
| A16-040P |
| A20-003P |
| A20-005P |
| A20-010P |
| A20-020P |
| A20-040P |
| A24-003P |
| A24-005P |
| A24-010P |
| A24-020P |
| A24-040P |
| A03-005SW-W |
| A03-010SW-W |
| A03-020SW-W |
| A03-040SW-W |
| A04-005SW-W |
| A04-010SW-W |
| A04-020SW-W |
| A04-040SW-W |
| A06-005SW-W |
| A06-010SW-W |
| A06-020SW-W |
| A06-040SW-W |
| A08-005SW-W |
| A08-010SW-W |
| A08-020SW-W |
| A08-040SW-W |
| A10-005SW-W |
| A10-010SW-W |
| A10-020SW-W |
| A10-040SW-W |
| A12-005SW-W |
| A12-010SW-W |
| A12-020SW-W |
| A12-040SW-W |
| A16-005SW-W |
| A16-010SW-W |
| A16-020SW-W |
| A16-040SW-W |
| A20-005SW-W |
| A20-010SW-W |
| A20-020SW-W |
| A20-040SW-W |
| A24-005SW-W |
| A24-010SW-W |
| A24-020SW-W |
| A24-040SW-W |
| A03-005SW-F |
| A03-010SW-F |
| A03-020SW-F |
| A03-040SW-F |
| A04-005SW-F |
| A04-010SW-F |
| A04-020SW-F |
| A04-040SW-F |
| A06-005SW-F |
| A06-010SW-F |
| A06-020SW-F |
| A06-040SW-F |
| A08-005SW-F |
| A08-010SW-F |
| A08-020SW-F |
| A08-040SW-F |
| A10-005SW-F |
| A10-010SW-F |
| A10-020SW-F |
| A10-040SW-F |
| A12-005SW-F |
| A12-010SW-F |
| A12-020SW-F |
| A12-040SW-F |
| A16-005SW-F |
| A16-010SW-F |
| A16-020SW-F |
| A16-040SW-F |
| A20-005SW-F |
| A20-010SW-F |
| A20-020SW-F |
| A20-040SW-F |
| A24-005SW-F |
| A24-010SW-F |
| A24-020SW-F |
| A24-040SW-F |
| A03-005SW-QE |
| A03-010SW-QE |
| A03-020SW-QE |
| A03-040SW-QE |
| A04-005SW-QE |
| A04-010SW-QE |
| A04-020SW-QE |
| A04-040SW-QE |
| A06-005SW-QE |
| A06-010SW-QE |
| A06-020SW-QE |
| A06-040SW-QE |
| A08-005SW-QE |
| A08-010SW-QE |
| A08-020SW-QE |
| A08-040SW-QE |
| A10-005SW-QE |
| A10-010SW-QE |
| A10-020SW-QE |
| A10-040SW-QE |
| A12-005SW-QE |
| A12-010SW-QE |
| A12-020SW-QE |
| A12-040SW-QE |
| A16-005SW-QE |
| A16-010SW-QE |
| A16-020SW-QE |
| A16-040SW-QE |
| A20-005SW-QE |
| A20-010SW-QE |
| A20-020SW-QE |
| A20-040SW-QE |
| A24-005SW-QE |
| A24-010SW-QE |
| A24-020SW-QE |
| A24-040SW-QE |
